Land surveying and boundary marking: reading the plans

1. The chartered surveyor in Morocco

The chartered surveyor — the IGT — is one of the few professionals in the property chain whose signature engages the very definition of ownership. They measure the ground, represent its geometry, materialise its limits, and produce the graphic documents that will serve as reference for the administration, the notary, the architect and the court. Where the architect designs and the valuer values, the surveyor establishes a fact: where a property begins and ends, what its area is, what its levels are.

It is a regulated profession. Practising requires a degree in surveying, registration with the professional body that governs the profession in Morocco, liability insurance and strict ethical rules. That regulation is not formalism: it exists because survey work creates rights binding on third parties. A marker badly set, a plan in error, an area miscalculated, and someone's property shifts by a few square metres — sometimes with cascading consequences for a permit, a sale or a neighbour dispute.

What only they may do

• Carry out survey work with effects on land rights: surveys intended for registration, subdivision, merger or updating a title;
• Set and re-establish the markers that materialise the limits of a property, and draw up the corresponding record;
• Sign the plans filed with the administration and the land registry — a plan not signed by a surveyor has no value for those procedures;
• Prepare the condominium plans and descriptive statements of division that accompany operations under the condominium regime (laws 18-00 and 106-12);
• Handle the setting out of works on the ground and the geometric checking of construction.

It must be said plainly, because the confusion is common in the market: ReaConsult carries out none of these services in-house. We are a property appraisal and valuation firm. When a file calls for boundary marking, a survey or a plan, we call on independent, authorised partner surveyors, who act in their own name and under their own professional responsibility. We do not mark boundaries, we do not survey, and we sign no survey plan.

2. Boundary marking, survey, dimensioned plan: what they really are

Three words recur in land files, and they are commonly used interchangeably. Yet they denote different operations, with different purposes and different legal effects.

Boundary marking is the operation that fixes the limit. The surveyor identifies the line of separation from the titles, the existing plans and the reality of the ground, then materialises that line with physical markers. Where it is carried out with the parties present, it brings the owners concerned together and gives rise to a signed record: it is that document, and not the mere presence of a low wall or a hedge, that evidences the agreed boundary. Boundary marking therefore settles a question of right translated into geometry.

The topographic survey is a measuring operation. The surveyor records on the ground the plan and level position of everything that matters: apparent boundaries, buildings, walls, trees, inspection chambers, visible services, roads, breaks of slope. The survey creates no right; it describes a state of fact at a given date. It is the base document of any design: without a reliable survey an architect draws into the void and a developer budgets blind.

The dimensioned plan is the survey rendered as a measured drawing: distances, angles, areas, levels, contour lines, scale and orientation. It is the document the end client receives. A serious dimensioned plan always carries four pieces of information to look for first: the scale, the coordinate system used, the date of the survey, and the identity and signature of the surveyor. Without them the document is only a sketch.

• You mark to establish or re-establish a boundary of ownership;
• You survey to know precisely the state of a plot before designing or buying;
• You produce a dimensioned plan to be able to calculate, draw, cost and decide.

3. Surveying and the ANCFCC: the link with land tenure

In Morocco the surveyor's work takes on its full meaning only against the land system administered by the ANCFCC, the national agency for land registry, cadastre and cartography. It holds the land titles, keeps the plans and records the rights. Between the physical ground and the land register, the surveyor is the translator: they turn a reality on the ground into a registrable geometry, and back again.

The classic starting point is land registration. An untitled property enters the land title regime through a procedure opened by a registration application. That procedure includes a field phase: administrative boundary marking, carried out by the competent services, then the survey work producing the land plan annexed to the title. Once the title is established it becomes definitive and unassailable as to the rights it enshrines — hence the capital importance of the quality of the survey work that prepared it.

Then, throughout the life of the property, the geometry keeps moving. A partial sale, a succession partition, a division into lots, a subdivision scheme: every time a titled property is fragmented, a morcellement is required — survey work producing the division plans that let the land registry create the new titles derived from the parent title. Conversely, several adjoining titles may be merged. These operations are framed by the regulations applicable to subdivisions, housing groups and land divisions, and are inconceivable without a surveyor.

For a property professional the practical consequence is simple: land documents and survey documents must always be read together. A recent certificate of ownership says who holds what and what charges are registered; the land plan says what the shape and the recorded area are; the current survey says what is actually happening on the ground today. It is in the gap between those three readings that most disputes sit.

4. Why a property professional must be able to read a plan

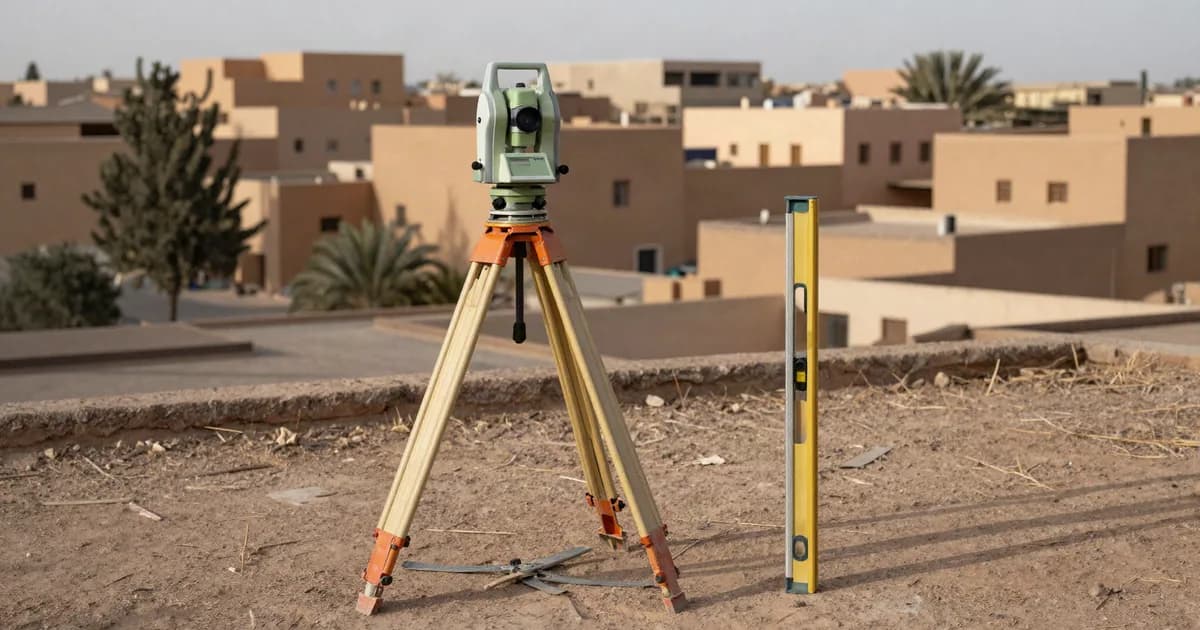

Nobody expects a valuer, a developer, an agent or an investor to handle a total station. But they all handle plans daily, and most look at them without reading them. It is a profitable skill, because the costliest land problems are almost always detectable on paper before they are detectable in court.

The five commonest traps

• The gap between the area on the title and the real area. The area recorded on the title is that of the original works, sometimes old. The area actually available today may differ — occupation, regularisation, historic imprecision. You do not value a plot on an unverified figure;
• Encroachments. A wall, a canopy, an outbuilding overhanging the neighbouring plot or public land: invisible on a photograph, immediately legible when the survey is overlaid on the land plan;
• Easements. Rights of way, pipework, an electricity line, landlocked access: they reduce use and therefore value, and are spotted on the plans and in the entries on the title;
• The shape and usefulness of the plot. Two plots of the same area are not worth the same if one is a regular rectangle and the other a narrow triangle: the usable buildable area, once setbacks are applied, can be very different;
• Relief. Contour lines and spot levels anticipate earthworks, retaining walls and drainage constraints — cost items that change the viability of a scheme.

Each trade draws a different benefit. The valuer secures the base of the valuation and documents the reservations. The developer checks very early whether the scheme fits the plot and avoids buying land that will not carry the project. The estate agent — whose professional framework will be structured by law 30-24, adopted in 2024 and awaiting promulgation — gains credibility by being able to explain a plan to a client rather than forwarding it without comment. The investor mainly learns to spot the moment to stop and call a surveyor.

Because that is the point of the skill: being able to read never means being able to do. The aim is not to do without the surveyor, but to know when to call them, what to ask for, and how to use what they deliver.

5. Typical course content and who it is for

Training useful to non-surveyors does not seek to turn them into surveyors — an aim both impossible and prohibited by regulation. It aims at one thing: making people autonomous in the reading, checking and use of survey and land documents, and in the dialogue with the surveyor.

The modules that count

• Vocabulary and documents: telling apart boundary marking, survey, dimensioned plan, land plan, division plan and condominium plan, and knowing which to ask for in which situation;
• Reading a plan: scale, orientation, legend, title block, dimensions, contour lines, the usual symbols for services and boundaries;
• Coordinates and reference systems: understanding what a Lambert coordinate and a projection system are, why the Moroccan zones differ by area, and why comparing two plans expressed in different systems produces gross errors;
• Cross-checking title, plan and ground: a method for reconciling the recorded area, the geometry of the land plan and the surveyed reality;
• Interfacing with the surveyor: writing a clear instruction, understanding the quote and the timescale, identifying the expected deliverables, reading back what is delivered and asking the right questions;
• Case work: anonymised files on plots, divisions and boundary disputes, worked in groups.

The natural audience is wide: valuers, developers and clients of construction, agents and negotiators, estate and asset managers, land departments of companies and institutions, and investors who deal in land regularly. Formats run from the in-person day — 1,500 MAD including tax— to a short video session for a one-off need, or an in-house format built on the client's own files.

6. The ReaConsult approach: appraisal in-house, surveying with our partners

Let it be repeated without ambiguity, because it is a matter of ethics as much as of commercial clarity: ReaConsult never carries out survey work in-house. We do no boundary marking, no survey, no setting out, and we sign no plan falling within the profession of chartered surveyor. Where a file requires it we rely on a network of independent, authorised partner surveyors, who contract in their own name, engage their own responsibility and remain sole masters of their technical conclusions.

What we bring is complementary, not competing. Since 2019 the firm has carried out more than 5,000 appraisals in 6 cities of the Kingdom, with RICS-certified experts and reports consistent with international valuation standards. On a land file our role is to cross-check the documents — title, plans, survey, planning constraints, local market — to produce a reasoned value, and to identify the moment when a survey intervention becomes indispensable before concluding. That is coordination, not execution.

The same logic applies to training. ReaConsult Academy, which has run 21 courses to date, does not train surveyors in surveying: it trains non-surveyors to read and use the documents, and to interface with the surveyor. Symmetrically, we offer surveying professionals a step up on the land and valuation side. For companies and land departments wanting to train several colleagues, the in-house format is built on your own files and may be fundable through the OFPPT Special Training Contracts (CSF), subject to review of the file.

Frequently asked questions

Note: ReaConsult carries out no survey work in-house and signs no plan falling within the profession of chartered surveyor; where a file requires it, independent authorised partner surveyors act in their own name and under their own responsibility. Being able to read a plan does not replace them. Law 30-24 was adopted in 2024 and is awaiting promulgation. To reach us, see our contact page or the property blog.
